The workflow editor

Use the workflow editor to read what an automation does, change its fields, and decide which saved version runs live. Larger changes, such as new nodes, come from a coding agent through MCP. You need Developer, Admin, or Owner permissions to make changes. Saving, testing, and deployment are separate steps: editing a draft leaves the deployed version in place.

Open Automations, then select an automation. It opens on Editor. An automation you open from a project's Automations tab shows that project at the start of the breadcrumb trail: choose the project's name to return to the project, or Automations to return to its automations. Whether you open an automation from a project or from the automation list, the rail marks Automations. To create one first, use Create or import an automation.

The Version selector stays at the right of the Editor, General and Runs tabs on desktop and mobile. Open it to read each version's message, who saved it and when, its test result and the live marker; Restores v3 and Based on v1 mark a version restored from, or built on, an older one. Select a row to open that version. All versions and changes at the foot of the list opens Versions, which shows the whole history; see Versions and deployments. On desktop, run actions sit beside the tabs together with Save and Discard; on General, only Save and Discard sit there. A dot on a tab marks its unsaved changes. Leaving the tab or switching versions asks you to resolve those changes first.

On a phone, opening an automation starts with compact navigation. The editor canvas fills the available height, and its run and deploy controls sit in a toolbar at the bottom of the canvas. Selecting a node opens its fields — and Save and Discard — in a panel at the bottom of the screen.

To switch without returning to the list, click the current automation's name in the breadcrumb trail. The menu includes every automation in the organization, even after switching to another project, except one bound only to projects you cannot open. Automations with no project assignments appear first, followed by those assigned to projects, with a horizontal divider between the two groups. Search by name or slug and select an entry. The switch keeps the current tab; from a run’s detail, it opens the other automation’s Runs list. A selected version number does not carry over: Editor opens the other automation’s latest saved version.

Read the canvas

Tale draws the canvas from the automation's document and arranges it for you: Start sits at the top, End at the bottom, and every node sits below the nodes it reads, so the canvas reads from top to bottom in the order a run goes. Nobody places a box, and drawing does not connect anything. A line comes from a reference such as {{ nodes.draft.output.text }}; to change what a node reads, change the reference.

Start and End

Start says what starts a run and what it receives. Under Starts, it lists the trigger in words, such as a schedule with its time zone and next run, and says when the trigger is off or waits for a live version. By hand, the API or MCP follows, because those starts are always possible. Under Input, it lists the fields of the run input with their type and whether they are required. When the trigger would start runs whose input the automation refuses, Start says so.

End says what a successful run returns and how a run can end. Under Returns, it names the output, such as The output of Report, or lists its fields and the nodes they come from; a field that is empty on some runs says may be empty. Under Ends, it lists the three outcomes: Succeeded returns the output, Failed happens when one of the nodes that stop the run fails, and Stopped happens when someone stops the run.

Nodes

Each node is a box. Its first line shows the node's icon and its title, made from its ID: open_issues reads Open issues. The next line says what kind of node it is: the connector and action, such as GitHub · List issues, Transform, Language model or Agent with its model, or the automation it calls. When Tale knows what the node returns, a line shows the shape, such as { issues: object[] }. The bottom line says what the node reads, such as Reads Issues and run input (owner, repo), or Reads no other node.

Chips and small icons add what the layout cannot show. Continues on error marks a node whose failure the run tolerates, and Never runs a node that no combination of conditions reaches. A shield marks a node that changes data in a connected service, where a live run may wait for an approval; a speech bubble marks an agent that may ask a question; a crossed-out pin marks a model with no pinned provider. Point at an icon to read its sentence; a screen reader hears it with the box. A box with problems shows their counts in its first line.

Conditions and branches

A node's condition (when) stands above it as a pill that says the condition in words, such as "total of Score is greater than 1,000". The node below runs only if the condition holds. When another node is its alternative (elseOf), the condition splits into two lines: Yes leads to the node on the left, which runs when the condition holds, and No leads to its alternative on the right. A condition that Tale cannot put into words shows the expression itself, in code type.

nodes:
  - id: escalate
    type: transform
    when: '{{ nodes.score.output.total > 1000 }}'
    input: { total: '{{ nodes.score.output.total }}' }
    code: 'return { text: "Escalate " + input.total };'
  - id: file
    type: transform
    elseOf: escalate
    input: { total: '{{ nodes.score.output.total }}' }
    code: 'return { text: "File " + input.total };'

In this excerpt, the condition above Escalate reads "total of Score is greater than 1,000", Yes leads to Escalate and No to File. Point at a condition, or at its Yes or No, to light up the paths through it.

Lines, frames and dashed boxes

A solid line means the lower node reads the output of the upper one. A dashed line means the lower node runs after the upper one without reading its output, as when its condition reads it. A dotted line into End leaves the last node of a run whose output End does not return. The Yes and No lines have their own colours.

A frame around a node says it runs more than once: once per item of a list (For each item of …) or again until a condition holds (Repeats until …, at most 5×). A dashed box is a node that may not run; after a run, it is a node that didn't run. Legend, beside the zoom controls, explains each kind of line and box.

Keyboard and the List view

The chart is one stop in the Tab order. Tab to it and the focus lands on Start; the arrow keys follow the lines from box to box and move along a row, Home and End jump to Start and End, and Enter opens the box in focus. A screen reader hears each box's title, its kind and what it reads; for a condition, it hears which node the condition decides on.

The view switch at the top left of the canvas changes between Canvas, List and Source. List shows the same nodes in run order, each with what it reads and its condition in words, and Enter opens a node from there too. When the canvas is very narrow, it starts in List. The address keeps the view and the open node, so a link you share opens both.

When a new version arrives

Someone can save a new version while you look at the automation, for example a coding agent through MCP. If you are looking at the latest version and have no unsaved changes, the canvas switches to the new one: boxes glide to their new places, new boxes fade in, changed ones are ringed once, and a screen reader hears "Now showing v6.". The node you had open stays open if it still exists. If you have unsaved changes, nothing moves. A notice above the canvas says A newer version was saved, which version your draft is based on, who saved the new one and what it changed. See what changed in v6 opens the comparison in a new tab, so your draft stays open, and Show v6 and discard my draft switches to the new version.

Follow the possible paths

A run's conditions decide which nodes run. The paths button at the top right of the canvas counts the ways a successful run can go, such as 3 paths, and opens Possible paths. Each path names the conditions that decide it, such as "Triage runs" or "Propose fails, the run goes on", and how many nodes run on it.

Point at a path, or move to it with the arrow keys, to preview it on the canvas. Click it or press Enter to keep it shown: nodes off the path turn dashed and say why they don't run, End marks the outputs that stay empty on that path, and a screen reader hears which path is shown. Show all, or Escape, shows every node again. The list stays open while you select nodes, so you can compare a path with a node's fields.

Under Ends the run when it fails, the list names the nodes whose failure stops the run, with what can make each one fail. Point at one to ring all of them in red; select one to open it.

On a phone, the list opens in a panel at the bottom of the screen. Choosing a path closes the panel and leaves a pill at the top of the canvas that names the path, with Show all. When every run takes the same path, the list says so. An automation with more than 12 conditions and tolerated failures has too many paths to list; each node's When it runs still says when it runs. A canvas with a cycle has no paths button. Paths a run can take explains how Tale works the paths out.

Edit a node

Select a box to open it. On a wide screen, the inspector opens beside the canvas; until you select a node, the canvas takes the full width. On narrower screens, it opens in a panel over the canvas. Its header shows the node's title, its kind, and its ID with Copy node ID; problems that belong to the node are listed under it. When it runs sums up the node's place in the flow: on every run, on some of the paths or never, why it can be skipped, and what happens when it fails, such as "If it fails, the run stops with its error."

Three tabs follow:

• Fields holds what you can change. A transform has Code; an llm has Prompt, System prompt, Model and Output schema; an agent also has its agent runtime and equipment. Input contains the JSON values and references passed to the node.
• Shape shows what the node receives and returns, where Tale got that shape from, and which nodes read its output. Select a reader to open it. Show as TypeScript shows the same shape as a type.
• Last run shows the node's Resolved input, Output and effects in the run shown on the canvas. It appears while the canvas shows a run, and is named Unsaved test for a try of the draft and In this test for a test's run.

The Model picker of an llm or agent node lists the models your organization’s connected providers serve; a model that is not listed can still be typed, but Problems then warns that a live run would fail at that node until its provider is connected. Change model, in the header, uses another model in every llm node that names one model — the steps it changes are listed first — as one edit you then save.

Open Control flow for the node's condition, iteration and failure handling; it is already open on a node that uses one of them. When, For each and Repeat until take expressions. Else of offers only nodes that have a condition, and None removes the alternative. Maximum repeats appears with Repeat until and takes a whole number from 1 to 20. On error chooses between Stop the run and Continue without it; continuing skips every node that reads the failed node's output. Under a condition, a list or an alternative, a sentence says in words what the setting does.

Use Close to return to the canvas. On a wide screen, clicking the empty canvas or pressing Escape outside a text field also closes the panel. The automation's trigger and project settings are on the General tab. Automation concepts explains the node types and expression rules.

Code, prompts and JSON

Code, prompts, conditions and JSON fields are code editors. They colour the syntax and every {{ }} template, and they know the automation. Type {{ in a prompt and the closing braces appear with the cursor between them; type nodes. to see only the nodes that run earlier, and .output. to see that node's fields with their types. Ctrl+Space opens the suggestions anywhere. Point at a reference to see its type, or press ⌘K ⌘I (Ctrl+K Ctrl+I) to have the type at the cursor shown and read out.

A moment after you stop typing, a problem is underlined exactly where it is. F8 and Shift+F8 move to the next and previous problem and read it out; ⌘. (Ctrl+.) applies a suggested fix, such as the closest node name. In a field with several lines, Tab indents; to leave it with the keyboard, press Escape, then Tab. Expand editor opens a long field in a larger editor, and Back to the field returns to it with your edit and your cursor in place.

A JSON field such as Input changes the node only when its text is valid JSON of the right kind. While you type, the node keeps its last valid value and the field says what is missing, such as "This must be a JSON object, in curly braces."

Start inputs and End output

Select Start to see what starts the automation. Trigger lists it in words; Change in General opens the General tab, where you set the trigger. Under Fields, Inputs shows the fields of the run input as a tree, and Input schema holds the JSON Schema behind them, which you can edit. Shape shows the input as Tale reads it, and Last run the input of the run shown.

Select End to see what a run returns. How a run ends lists the three outcomes; under Failed, each node whose failure stops the run is a button that opens it. Under Fields, Output holds the JSON value a successful run returns, with templates such as {{ nodes.report.output }}. Shape shows the output's shape, and Last run the output of the run shown.

Read the source

Choose Source in the view switch to read the whole document as YAML, highlighted, with line numbers, folding and search (⌘F or Ctrl+F). Every problem the check found is underlined at the line it concerns, so a problem in a part without a field of its own, such as the name, has a place to be read. The source is read-only: Copy YAML copies it, and Download YAML saves it as a file named after the automation and version, such as gmail-triage-inbox-v3.yml, with -draft added while you have unsaved changes. To change the document, use the fields or your coding agent.

Edit with your coding agent

Larger changes, such as adding nodes or reworking the flow, come from a coding agent such as Claude Code, Codex or Cursor, connected to Tale's MCP server. Edit with your coding agent is the last button at the top right of the canvas in every view, and the main action of an automation that has no nodes yet. Its dialog shows the automation's name to give the agent, Set up MCP, which opens Settings > API > MCP, and How to connect a coding agent, which opens the MCP endpoint guide. The agent reads the automation, changes and checks it, and saves a new version, which then appears on the canvas as When a new version arrives describes.

Find and fix problems

While you edit, Tale checks the draft the same way it checks a save. A moment after you stop typing, the Problems button beside Tests shows what the check found: a red error icon and an amber warning icon, each with its count, or No problems. On a phone, the button sits in the toolbar over the canvas. An error is something a run would fail on, such as a reference to a node that does not exist. A warning is something that might go wrong, such as reading the output of a node that is sometimes skipped. A node, a condition, Start or End with problems shows the same counts on its box, and a field with a problem explains it under the field.

Click Problems to list them. On a wide screen the list opens under the canvas; on narrower screens it opens in a panel. Each entry says what is wrong, where it is, why, and how to fix it. Technical details shows the engine's own message, and the code beside the title helps when you search or ask for support. All, Errors and Warnings filter the list, and Escape closes it.

Select an entry, or press Enter on it, to go there: the node opens, its field takes focus, and the part that causes the problem is selected. A problem with no field of its own, such as a model the organization does not serve, is listed under Problems in this node at the top of the node's fields. A problem in the inputs opens Start, one in the output opens End, one in a test opens that test under Tests with the place selected in its YAML, and one in any other part of the document, such as the name, opens Source at that line. A problem in a node that your draft no longer has says "Change this with your coding agent."

While errors remain, Save is disabled and says why, for example "Fix 1 error to save". On a phone, where Save sits under a node's fields, Show problems beside that reason opens the list. Warnings never block saving or deploying. If Tale can't check the draft, for example because the connection dropped, the button shows Couldn't check and you can still save: every save is checked again on the server. When a save or a deploy is refused because of errors, the list opens with the server's problems, starting at the first error.

The check runs only for Developers, Admins and Owners, the roles that can save. What Tale checks before a run explains each kind of problem.

Save and test a version

1. Edit the required fields and click Save.
2. Enter a Version message that explains the change, then Save version. This appends a version and preserves earlier ones. The dialog names the version you create, such as Saves as v6., and Review changes lists what your draft changes, as Compare two versions shows them. If someone saved another version while you were editing, Tale refuses the save and says which version was saved, by whom and when; See what changed in v6 opens its changes in a new tab. Discard my changes and reload shows the newer version, Save anyway appends your version on top of it — the newer one stays in the version history, but the latest version is then yours. If the automation has tests, Tale runs them as it saves: Save version reads Saving and running tests… until they finish, and the version keeps their result, even when a test fails.
3. Click Test run. If the workflow declares an input schema, type the input as JSON in Run input (JSON); the field suggests the schema's field names as you type a key, and ⌘Enter (Ctrl+Enter) starts the run. Expand Input schema to see the required fields and their types. Invalid JSON or a schema mismatch prevents the start.
4. Start the test, switch to the Runs tab and inspect its row. Open it to compare the resolved input, output, and proposed operations with your expected result.

For a workflow requiring owner and repo, an input might be:

{
  "owner": "your-organization",
  "repo": "your-repository"
}

Use the workflow's actual schema. A field typed as a number must receive a JSON number, not a quoted string. Where a project selector is offered, check the scope before starting.

Test run uses the selected saved version with deterministic mocks. It does not send mail or change external records. A draft can be tested before it is deployed; a successful mock does not verify live credentials or outside services.

To check the same cases on every save and before every deploy, write them as tests: Test an automation shows how.

Try the draft

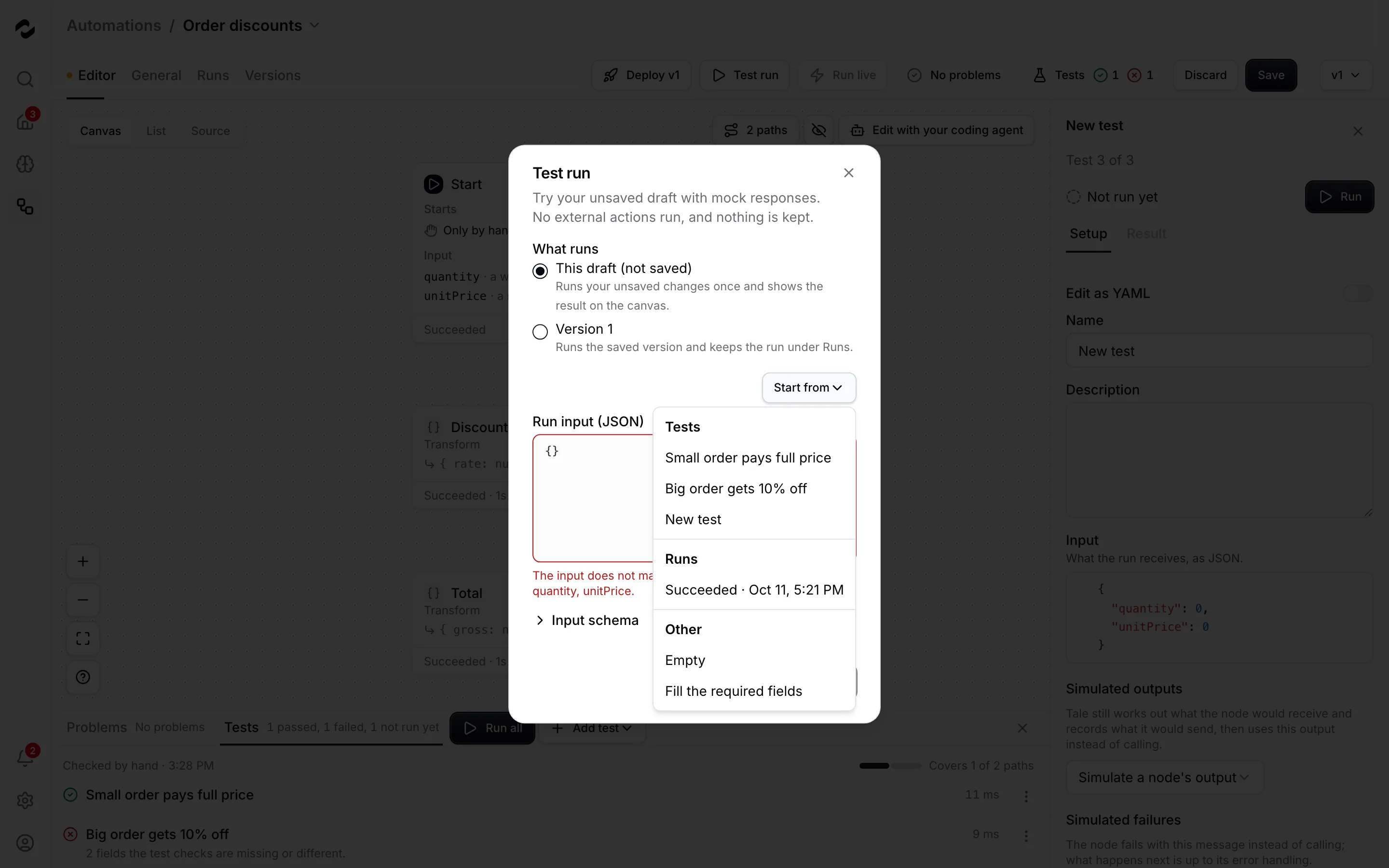

With unsaved changes, Test run first asks What runs. This draft (not saved) runs your changes once with the same mocks, without saving them: the run is kept nowhere and does not appear under Runs. The other choice, such as Version 3, runs the saved version on screen, as above. The run input is checked against the input schema of the one you choose.

Start from, above Run input (JSON), fills the input from a test, one of the five newest runs, the trigger's input, nothing (Empty), or a placeholder for each required field (Fill the required fields). The dialog opens on your last choice for the automation. When the test you start from simulates steps, Use the test's simulated outputs and failures appears, on by default: the try then stands in for those steps as the test does, and they carry Simulated output or Simulated failure on the canvas. A saved version's run doesn't use them.

The draft's run then lies over the canvas in place of the last run, under an Unsaved test strip that says how it ended and when, such as Succeeded in 12 ms or Failed at Score, and it plays back step by step like a recorded run. Select a node to see what it received and returned on its Unsaved test tab. Once you change the draft, the strip says The draft changed since this try. Try again runs the draft as it is now, with the same input; ⌘⇧Enter (Ctrl+Shift+Enter) does the same while the canvas or the inspector has focus. Hide result brings back the last run. A try stops after 20 seconds.

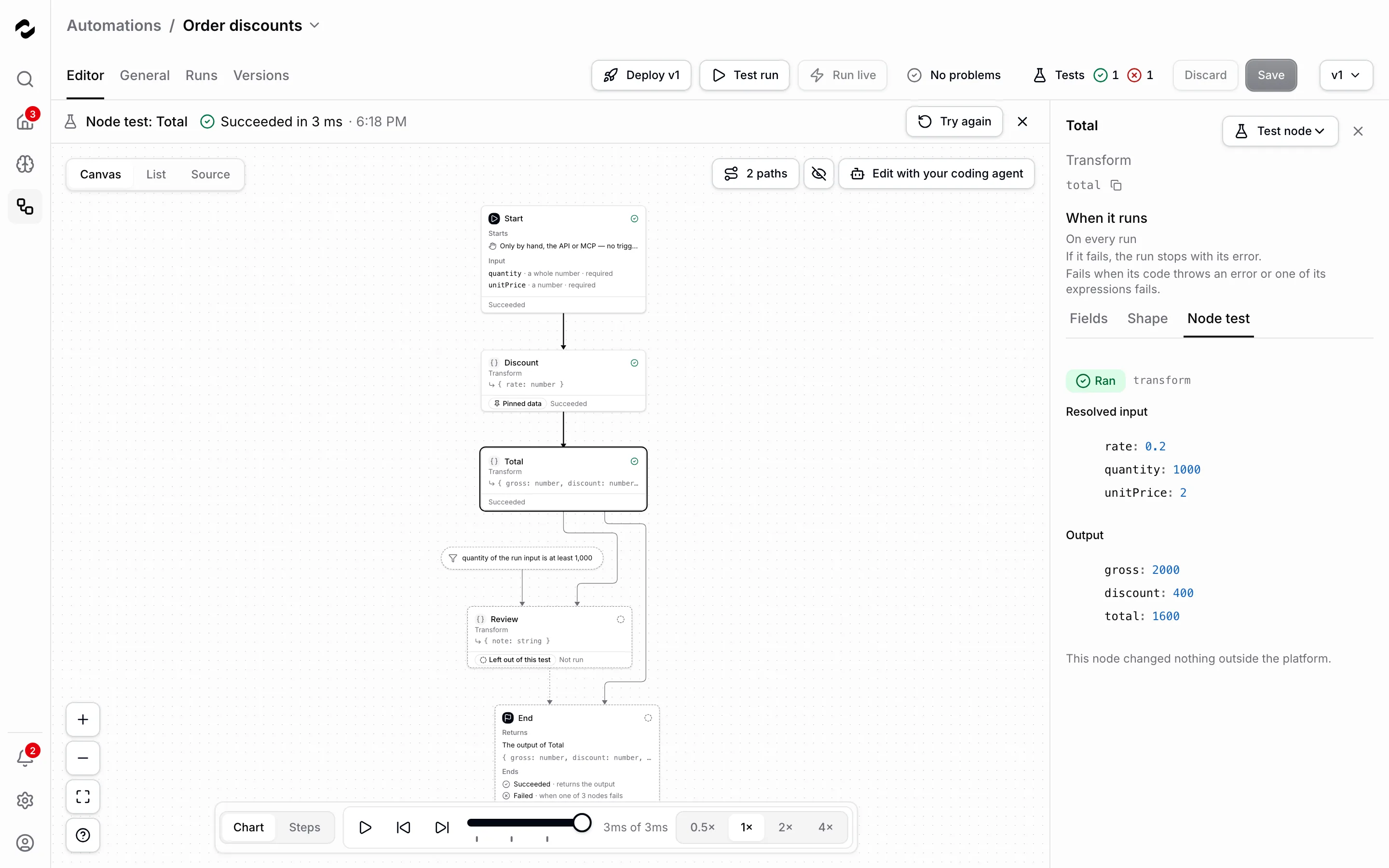

Test one node, or up to a node

To try one step without the rest, select its node and open Test node beside its name:

• Test this node runs the node alone, as the draft has it, on the data you give it. Under Uses data from, each node it reads gets its output as JSON: from the run on the canvas when there is one, as you last tested the node, or empty for you to write. Run input (JSON) appears when the node reads the run's input, and Item when it runs once per item. On the canvas the nodes it reads carry Pinned data and the rest Left out of this test; the node's Node test tab shows what it received and returned. When its condition is false with that data, the strip says the test ran it anyway.
• Test up to here runs the draft up to the node: everything it needs, and nothing after it. It asks for the run input as Test run does, and the strip reads Up to Review.

Agent nodes are simulated in tests. Like a try, a step test keeps no run; the data you give a node is kept for the session, so testing it again starts from it.

Start from an older version

When Version shows an older version than the latest, a band above the canvas says so, such as You're viewing v2. The latest is v5. Show v5 switches to the latest version, and Compare v2 with v5 shows what changed since.

You can still edit the older version. The band then adds Saving creates v6 from v2., and saving does exactly that without asking you to reload. The save dialog says Saves as v6, based on v2. and warns that the changes made in v3 to v5 are not in your draft, with a link to compare them. In the version history, the new version carries Based on v2. To keep those changes, switch to the latest version before you edit.

Deploy and run live

Choose the tested version under Version and click the deploy button beside it, which names that version, such as Deploy v3; for a version older than the live one, it reads Roll back to v2. The Live badge marks the deployed version. The deploy works as on Versions: a notice confirms it and offers Undo, and if another version went live in the meantime, nothing changes and the notice says who deployed it. You can also deploy any saved version from Versions, as Deploy or roll back in one click describes.

Tale runs a version's tests again before it goes live. If one fails, the version is not deployed: This version was not deployed says how many tests fail, and Tests opens with focus on the first that failed. Correct the cause and save a new version; with unsaved changes on screen, a dialog says the tests fail instead. If the version no longer passes today's checks, the deploy is refused and Problems lists what to fix; with unsaved changes on screen, discard them first to see that list.

Run live starts the deployed version, even if you are viewing another one. Its confirmation shows the scope and, when required, Run input (JSON) for that deployed version. Check both before confirming. Live runs may act on connected systems and may wait for an approval.

A trigger also runs the deployed version. Set it up only when you are ready for repeated or externally initiated execution; see Automation triggers.

Versions and deployments

Versions shows what runs live and how the automation got there. Its top card names the live version, when it went live, who deployed it and how, such as in the app or with Claude Code through MCP, and how many of its runs are still in progress. Those runs finish on the version they started with, whatever goes live next. Compare v1 with v2 shows what the live version changed against the one it replaced. When no version is live yet, the card offers to deploy the latest one.

Versions stay until you delete the automation, unless an admin sets a retention period for automation versions. That removes old versions nothing uses; the live version, the recent deployments' versions, any version a run used and the newest twenty always stay.

The Versions list below the card shows every saved version, newest first:

• Version carries the Live badge on the deployed version and says when another version last went live.
• Message shows the version message. Restores v3 marks a restored version, and Based on v1 marks a version saved from an older version than the one before it.
• Saved by names who saved the version and how. Versions the platform installed show Tale.
• Changes counts the nodes the version added, removed and changed compared with the version before it, and names other parts that changed, such as Output or Tests. First version marks the first one; versions saved before Tale kept this summary show Not recorded.
• Tests says how many of the version’s tests passed at its last check, such as 2 of 3 tests passed, and when and how they were checked: checked on save, checked on deploy or checked by hand. A version checked before Tale kept the counts shows Passed or Failed. No result means no verdict was kept, for example because the version has no tests.

Select a row to see what that version changed, as Compare two versions describes. Its menu also offers Compare with live, Open in editor and Download YAML, which saves the version as a file named after the automation and version, such as weekly-digest-v3.yml.

Choose Deployments above the list to see every time a version went live: when, which version, whether it was a rollback, which version it replaced and who deployed it. A version that was live before Tale kept this history reads v4 was live and is marked Recorded before the history started. Select a row to see what that deploy changed against the version it replaced.

The automation list leads here as well: select a row’s version count, or choose Version history in its row menu.

Deploy or roll back in one click

You need Developer, Admin or Owner permissions. On the top card, Roll back to v1 puts back the version the live one replaced; after a rollback, the same place offers the newer version again, such as Deploy v3. In either list, open a row’s menu and choose Deploy v5 or Roll back to v3.

The version goes live at once: triggers and new live runs use it, and runs already started keep theirs. A notice confirms it, such as v3 is live., with Undo, which puts the replaced version back the same way. If the automation’s trigger is off, the page says so and offers Turn on the trigger.

Tale compares the live version on your screen with the one live when you click. If someone else deployed a version in the meantime, nothing changes: the notice names who deployed which version and when, and Show deployments opens the list so you can decide again. A version that no longer passes today’s checks, or whose tests failed, cannot go live. A dialog lists what to fix, and Open v4 in the editor takes you there.

Restore an older version

To bring an older version back as the newest, choose Restore as new version in its row menu. Tale saves a copy of it on top of the latest version, and the versions in between stay in the history. The Version message starts as Restore v3; you can change it. The live version stays as it is unless you also tick Make v5 live right away.

After Restore, a notice confirms the new version, and Open v5 shows it in the editor. If the latest version already matches the one you restore, nothing is saved. If someone saves a version while the dialog is open, the dialog says who and offers to restore on top of that version instead.

Compare two versions

A version's page shows what it changed. Its header names the version, its message, who saved it and how, and offers Open in editor, the version's deploy or rollback button, and in its menu Restore as new version and Download YAML. Compare with chooses the version to compare it with; the version before it, the live version and the version it was based on come first. The chips beside it count the nodes added, removed, changed and renamed, and name the other parts that changed, such as Inputs or Tests.

Choose how to read the changes:

• Graph draws both versions on one chart. An added box has a green frame and Added, a removed one is red and struck through, a changed one is amber with what changed at its foot, and a renamed one says its old name, such as Was Post. A line only one version draws carries a plus or a minus. The switch above the chart shows either version's own chart with the changes brought forward. Select a box to see its changes beside the chart: Start shows the inputs that changed, End the output.
• Changes lists every change by where it is: Start: run inputs, Nodes, End: output, Tests and Package data. Open a row to see its fields before and after; code, prompts and conditions are compared line by line. Show on the graph selects the box a change belongs to.
• YAML compares the two versions' source line by line, unified or side by side.

On a phone, the page opens on Changes. Two versions with the same content say No differences between v3 and v5, and the page adds when only their messages differ. The first version is compared with nothing: everything in it is new. Triggers and projects belong to the automation, not to a version, so a comparison never shows them.

Diagnose a result

Once the automation has run, the canvas shows its latest run: each node's bottom line says how it ended, such as Succeeded or Skipped, and each condition shows how it decided, Yes or No. The eye button at the top right of the canvas, Hide last run, removes the run from the canvas, and Show last run brings it back. Select a node and open Last run to see its Resolved input, Output, and effects. This is often enough to find a wrong reference: compare the input received by the failed node with the output of the node it reads.

Switch to Runs and open a row for the full record. The tabs remain visible with Runs active; Editor returns to the workflow. Check whether it was a test or live run and inspect already completed operations before starting another run. Execution logs explains waiting, failures, automatic retries, and stopping.

Roll back or delete

To roll back, open Versions and use the top card or a version’s row menu, as Deploy or roll back in one click describes. You can also open an earlier version in Editor with Version and click its button there, such as Roll back to v2. Future starts use it; version history remains intact. A version message such as “Restore the previous recipient mapping” makes that choice easier to review.

To delete the automation, return to the list, open its row menu, and select Delete. Read the named confirmation. All versions, deployment, trigger, and project bindings are removed. An unfinished run blocks deletion; stop it or let it finish first. Past runs remain subject to retention. Deleting an automation does not undo the actions its runs already performed.
